BISOMAC Basic

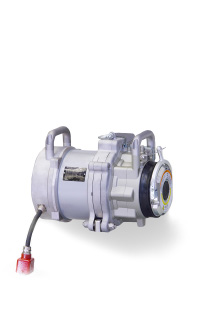

BISOMAC308
Series
Lightweight
Compact Design
Easy Maintenance
- Lifting capacity: Up to 600 kg.
- Self weight: 37 kg.
- Excellent low voltage performance.
- Easy assembly and disassembly.
- Maintenance simplified with easy side-cover access.
- Fewer parts requiring inspection or replacement.
- Well-balanced design.
Tow-carrying grip for easy handling. - Designed to prevent operation error and malfunctions.
BISOMAC210
Series
Heavy Duty Capacity up to 800 kg
Easy Maintenance
- Llifting capacity: Up to 800 kg.
- Self weight: 45 kg.
- Excellent low voltage performance.
- Easy assembly and disassembly.
- Maintenance simplified with easy side-cover access.
- Fewer parts requiring inspection or replacement.
- Well-balanced design.
Tow-carrying grip for easy handling. - Designed to prevent operation error and malfunctions.
Basic Series Specifications
| BISOMAC308 | BISOMAC210 | |||
|---|---|---|---|---|
| Load Capacity (kg) | 600 | 800 | ||
| Power | 3Phase 200V (50Hz) 200V/220V (60Hz) |
3Phase 380V/400V/415V (50Hz) 380V/440V (60Hz) |
3Phase 200V (50Hz), 200V/220V (60Hz) |
3Phase 380V/400V/415V (50Hz) 380V/440V (60Hz) |
| Ampere | 7 | 5 | 8.5 | 4.5 |
| Motor Power (kW) | 1.1 | 1.5 | ||
| Speed (m/min) | 10.5 m/min (50Hz) 12.5 m/min (60Hz) |
9 m/min (50Hz) 10.5 m/min (60Hz) |
||
| Wire Rope dia. (mm) | 8 | 10 | ||
| Safety Device Option | Overspeed Detection Device, Overload Detection Device, Fall Arrest Device (Slack Rope Device) | |||
| Weight (kg) | 37 | 45 | ||
| Dimensions (mm) H x W x D |
303 x 258 x 445 | 283 x 269 x 382 | ||
Meet the Construction Code for Gondola (Japan)
