Products

BISOMAC North America

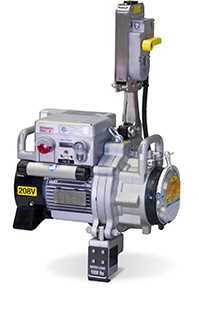

BISOMAC308
Series

Lightweight
Compact Design
Easy Maintenance

  • Lifting capacity: Up to 1250 lbs.
  • Self weight: 88 lbs.
  • Excellent low voltage performance.
  • Easy assembly and disassembly.
  • Maintenance simplified with easy side-cover access.
  • Fewer parts requiring inspection or replacement.
  • Well-balanced design.
    Tow-carrying grip for easy handling.
  • Designed to prevent operation error and malfunctions.

BISOMAC210
Series

Heavy Duty Capacity up to 1500 lbs
Easy Maintenance

  • Llifting capacity: Up to 1500 lbs.
  • Self weight: 108 lbs.
  • Excellent low voltage performance.
  • Easy assembly and disassembly.
  • Maintenance simplified with easy side-cover access.
  • Fewer parts requiring inspection or replacement.
  • Well-balanced design.
    Tow-carrying grip for easy handling.
  • Designed to prevent operation error and malfunctions.

North America Series Specifications

  BISOMAC308 BISOMAC210 BISOMAC Air
Load Capacity (lbs) 1250
1000
750		 1250
1000
750		 1500
1000		 1150
1000		 1500
1000
Power 1Phase, 208V, 60Hz 3Phase, 208V, 60Hz 1Phase, 208V, 60Hz 3Phase, 208V, 60Hz Pneumatic
Ampere
11.5 (1250 lbs)
10 (1000 / 750 lbs)
 9
13 (1500 lbs)
10 (1000 lbs)
8 (1000 lbs) *1
8.5 (1500 lbs)
7.5 (1000 lbs)
Motor Power (HP) 1.5 1.5
2
1.2 *1
 2
Speed (ft/min) 35 35 35 35 35
Wire Rope dia. (in.)
5/16
3/8 *3
5/16
3/8 *3
3/8 (1500 lbs)
5/16 (1000 lbs)
 5/16
3/8 (1500 lbs)
5/16 (1500 lbs/1000 lbs)
Safety Device*4
BISOLOCK
BISOLOAD *2
BISOLOCK
BISOLOAD *2
BISOLOCK
BISOLOAD *2
BISOLOCK
BISOLOAD *2
 BISOLOCK
Weight (lbs)
101.6
95.6 *1
101.6
95.6 *1
130
123.5 *1
 130 119
Dimensions (in.)
H x W x D
27.2 x 11.8 x 15.6
23.5 x 10.2 x 15.6 *1
27.2 x 11.8 x 15.6
23.5 x 10.2 x 15.6 *1
29.5 x 12.4 x 17.9
29.5 x 12 x 17.9 *1
 29.5 x 12.4 x 18.2 29.5 x 12.4 x 17.9
Compatible Standard
UL/cUL
UL *1
UL/cUL
UL *1
UL/cUL
UL *1
 UL/cUL UL/cUL
  1. L Model
  2. L Model is not equipped Overload Detection Device.
  3. BISOMAC308 1P-1259, BISOMAC308 3P-1259 only.
  4. BISOLOCK=Overspeed Detection Device, BISOLOAD=Overload Detection Device.

Compatible Standard

UL1323 Standard for Safety for Scaffold Hoist
CAN/CSA Z271-10. Safety Code for Suspended Platforms

See All BISOMAC Series Specifications

North American Distributor;Bee Access Products
