Products

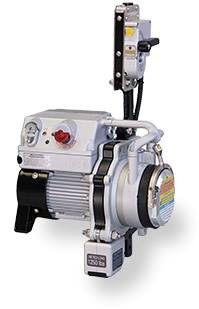

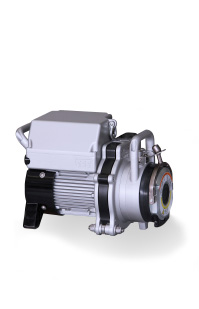

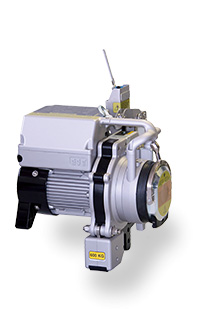

BISOMAC Series

North America

Basic

Europe

    • BISOMAC308
      North America
    • BISOMAC210
      North America
    • BISOMAC308
      Basic
    • BISOMAC210
      Basic
    • BISOMAC308
      Europe
    • BISOMAC210
      Europe
Compatible Standard

  • UL1323
    Standard for Safety for Scaffold Hoist

    CAN/CSA Z271-10
    Safety Code for Suspended Platforms

  • Japanese Construction Code for Gondola

  • EN1808:1999/A1.2010:
    Safety requirments on Suspended Access Equipment

    EN60204-1:2006/A1:2009:
    Safety of machinery - Electrical equipment of machines - Part1:General requirments

    EN ISO13849-1/2008/AC:2009:
    Safety of machinery - Safety related parts of control systems - Part1: General principles for design

    EN ISO 12100:2010:
    Safety of machinery - General principles for design - Risk assessment and risk reduction

Control Method
  • Independent Control
  • Central Control
  • Central Control
Power

  • 1Phase, 208V, 60Hz
    3Phase, 208V, 60Hz

  • 3Phase, 200V(50Hz), 200V/220V(60Hz)

    3Phase, 380V/400V/415V(50Hz), 380V/400V(60Hz)

    • 1Phase, 230V, 50Hz

      3Phase, 380V/415V, 50Hz

    • 1Phase, 230V, 50Hz
      3Phase, 400V, 50Hz

Load Capacity

    • 1000 lbs
      1250 lbs
        750 lbs

    • 1500 lbs
      1000 lbs
      1250 lbs
      1150 lbs
        750 lbs

    • 600 kg

    • 800 kg

    • 600 kg
    • 600 kg
      800 kg
Speed
  • 35 ft/min
    • 10.5 m/min (50Hz)
      12.5 m/min (60Hz)
    • 9 m/min (50Hz)
      10.5 m/min (60Hz)
    • 8 m/min (1Phase)
      10.5 m/min (3Phase)
    • 8.5 m/min
Wire Rope dia. (Variety Specified by Manufacturer)
Safety Device

  • Overspeed Detection Device
    Overload Detection Device

  • Overspeed Detection Device
    Overload Detection Device
    Fall Arrest Device (Slack Rope Device)

  • Overload Detection Device
    Upper/Ultimate Limit Switch
    Fall Arrest Device (Slack Rope Device)

Self Weight
    • 88 lbs
    • 108 lbs
    • 37 kg
    • 45 kg
    • 46 kg
    • 48 kg (1Phase)
      45.5 kg (3Phase)

See All BISOMAC Series Specifications
