Products
BISOMAC Europe

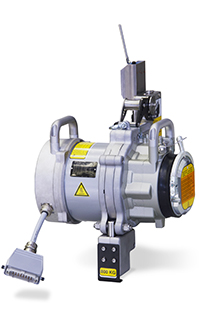

BISOMAC308
Series
Lightweight
Compact Design
Easy Maintenance
- Lifting capacity: Up to 600 kg.
- Self weight: 46 kg.
- Excellent low voltage performance.
- Easy assembly and disassembly.
- Maintenance simplified with easy side-cover access.
- Fewer parts requiring inspection or replacement.
- Well-balanced design.
Tow-carrying grip for easy handling. - Designed to prevent operation error and malfunctions.
BISOMAC210
Series
Heavy Duty Capacity up to 800 kg
Easy Maintenance
- Llifting capacity: Up to 800 kg.
- Self weight: 54 - 56.5 kg.
- Excellent low voltage performance.
- Easy assembly and disassembly.
- Maintenance simplified with easy side-cover access.
- Fewer parts requiring inspection or replacement.
- Well-balanced design.
Tow-carrying grip for easy handling. - Designed to prevent operation error and malfunctions.
Europe Series Specifications
| BISOMAC308 | BISOMAC210 | |||
|---|---|---|---|---|
| Load Capacity (kg) | 600 | 600 | 800 | |
| Power | 1Phase 230V, 50Hz |
3Phase 380V/415V, 50Hz |
1Phase 230V, 50Hz |
3Phase 380V/415V, 50Hz |
| Ampere | 8 | 4.5 | 7.5 | 4 |
| Motor Power (kW) | 1.1 | 1.5 | ||
| Speed (m/min) | 8 | 10.5 | 8.5 | |
| Wire Rope dia. (mm) | 9 - 9.5 | |||
| Safety Device | Upper / Ultimate Limit Switch, Fall Arrest Device (Slack Rope Device), Overload Detection Device | |||
| Weight (kg) | 45 | 56.5 | 54 | |
| Dimensions (mm) H x W x D |
561 x 355 x 396 | 640 x 386 x 455 | 640 x 386 x 382 | |
Compatible Standard
EN1808:1999/A1.2010:Safety requirments on Suspended Access Equipment
EN60204-1:2006/A1:2009:Safety of machinery - Electrical equipment of machines - Part1:General requirments
EN ISO13849-1/2008/AC:2009:Safety of machinery - Safety related parts of control systems - Part1:General principles for design
EN ISO12100:2010:Safety of machinery - General principles for design - Risk assessment and risk reduction
See All BISOMAC Series Specifications
